Model: RYG-3

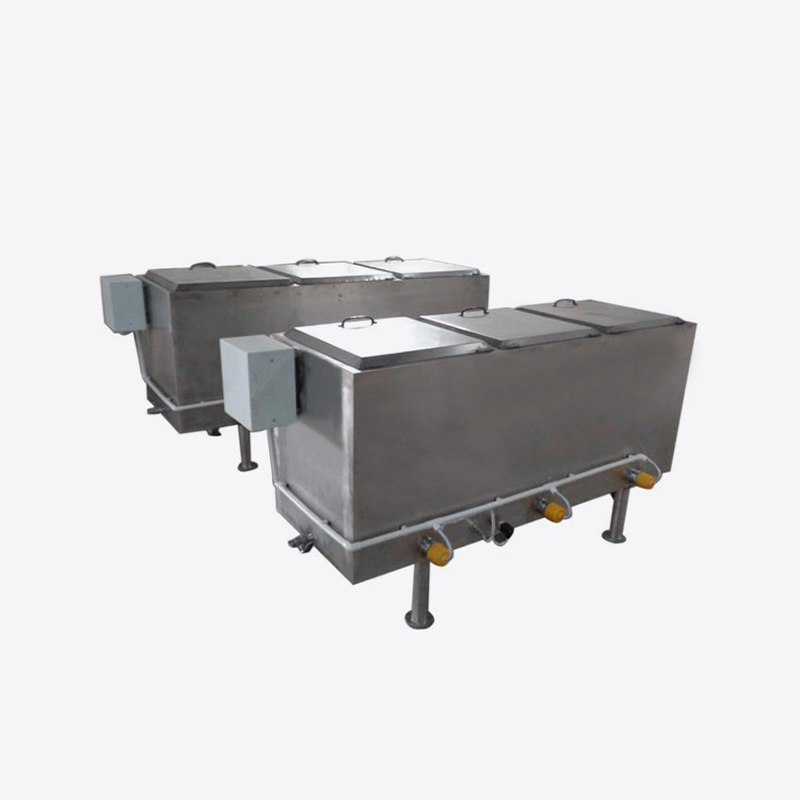

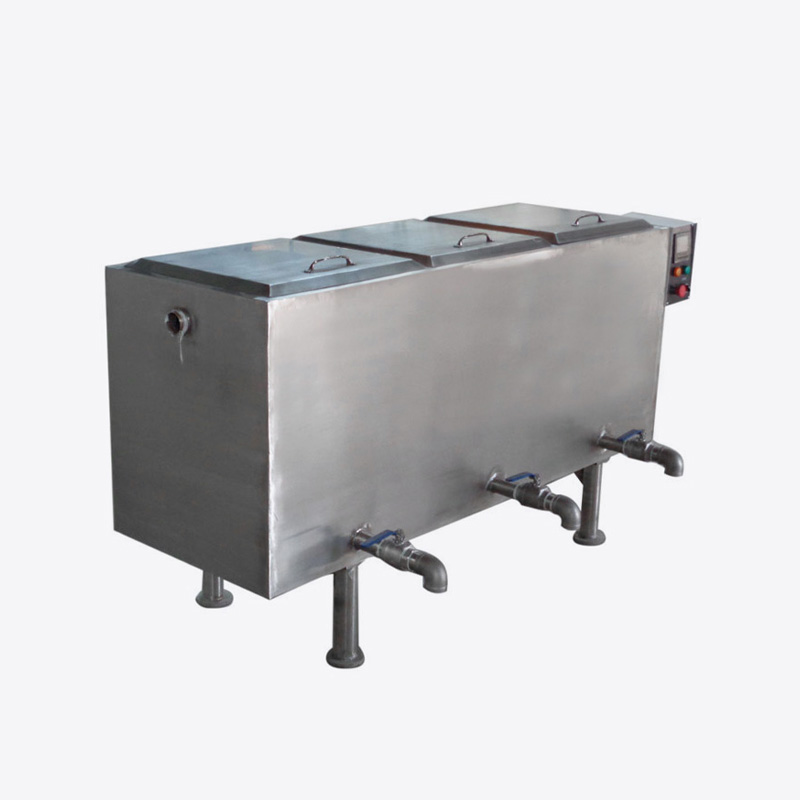

RYG-3 Automatic Square Chocolate Fat Melter Chocolate Melting Machine

Automatic Square Chocolate Fat Melter Chocolate Melting Machine is mainly used to melt cocoa liquor, butter, or cocoa butter substitute, melt solid cocoa butter into liquid. It is a special equipment for melting oil before chocolate production. The Chocolate Fat Melter Chocolate Melting Machine of GUSU machinery uses electric heating, and automatic temperature control, with a control panel, simple operation, and is made of stainless steel. The parts of the material are 304 stainless steel,  for the requirements of food hygiene. It is equipped with an independent heating system and efficient melting.
Features:
1. Round or square types are available
2. Temperature control
3. Efficient melting, durable
4. Multiple capacity options to meet the needs of different manufacturers
5. The chocolate fat melter supports customization

Contact us

Description

Dimensions

Heating power 3kw*3=9kw
Maximum capacity 360kg, divided into three cells
Inner and outer stainless steel 304 production, inner plate thickness 3mm, outer plate thickness 6mm, jacket water heating, jacket water temperature 40-65℃, automatic temperature control. The pressure of the jacket is not more than 1.5kg
With control box, electrical components: Chint · Temperature control brand: Yudian
Dimensions: 1660*830*1000mmmm

Water temperature in the jacket

40-65℃

Heating Power

9kW

Nominal capacity

120L × 3

Outer Dimension

1660x830x1000mm
