Model: JPG600,800,900,1000,1200

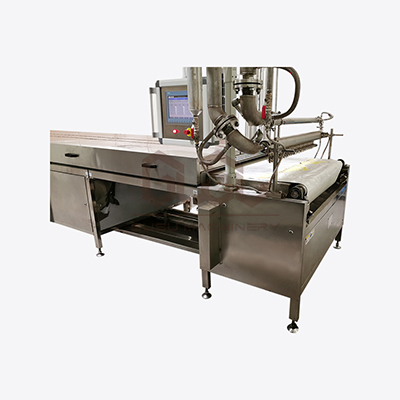

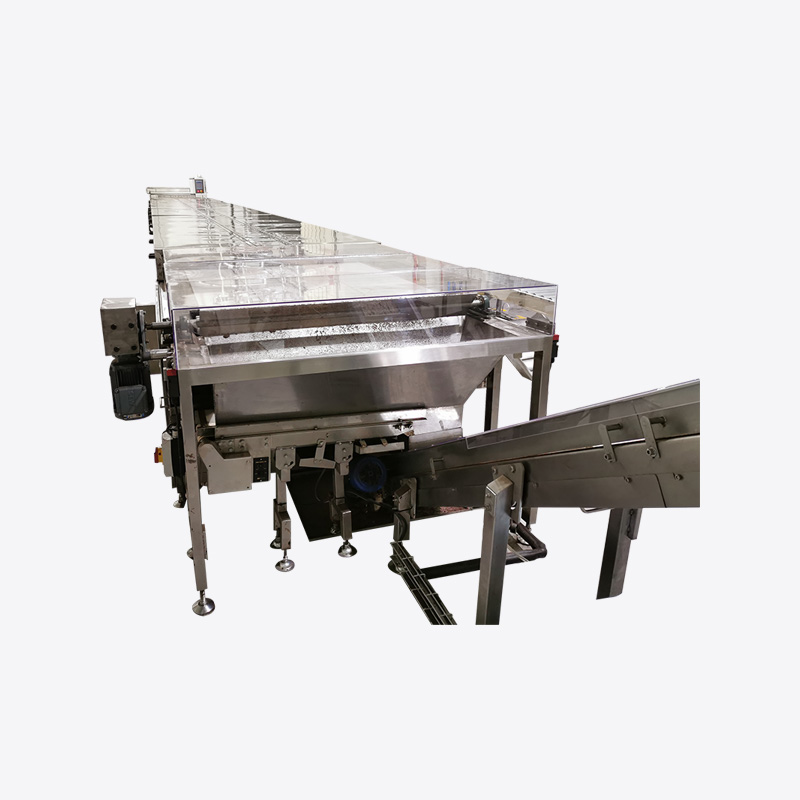

JPG Series Chocolate Chunks Production Line chocolate chunk-making machine is a special line for the production of chip chocolate, with complete specifications and models, conveyor belt width of 600,800,900,1000,1200mm optional. The whole production line of the chocolate chunks-making machine is fully automatic, with a clear structure. The chocolate pulp is directly fed by the temperature-regulating machine. The chocolate pouring machine is poured on the conveyor belt and then enters the cooling tunnel, and finally, the finished product is discharged in sections.
Description
Dimensions
Main Features
1) Simple linear structure, easy installation and maintenance.
2) The operating components of the equipment are all well-known brands.
3)PLC control, speed, and product weight are controllable.
4) Fully automatic, servo motor, large production capacity.
| Model | Capacity | Power | Belt width |
| JPG600 | 350kg/h | 16.12kW | 600mm |
| JPG800 | 500kg/h | 16.12kW | 800mm |
| JPG900 | 600kg/h | 18.37kW | 900mm |
| JPG1000 | 650kg/h | 19.07kW | 1000mm |
| JPG1200 | 800kg/h | 23.57kW | 1200mm |
