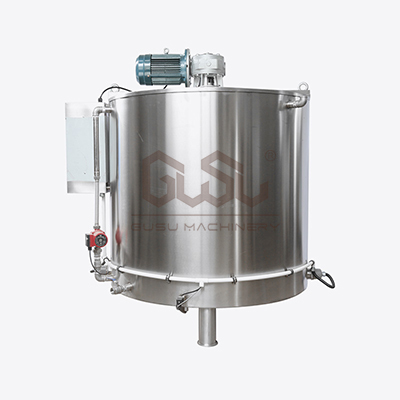

Stainless Steel Chocolate storage tank The chocolate holding tank is used to store the milled chocolate paste. The chocolate storage tank has complete specifications and models. Its equipment structure is reasonable. The temperature control system can realize automatic temperature control, and effectively adjust the temperature of chocolate pulp by controlling the temperature of water in the jacket of the insulation cylinder, which has the functions of heating, constant temperature, and cooling down. At the same time, the continuous stirring of the chocolate pulp by the blender can play the effect of deodorization and degassing, and effectively prevent the separation of oil. Chocolate insulation cylinder can be used to store large amounts of chocolate pulp to maintain continuous production needs. In addition, the Stainless Steel Chocolate storage tank can also be used as auxiliary equipment on other chocolate equipment such as chocolate thermostats or chocolate production lines to make up for their low storage and improve overall production efficiency.
Description
Dimensions
The storage tank equipped with rated temperature is used for storing the fine-milled chocolate paste via agitating.
Model | Capacity(L) | Motor Power (kW) | Weight(kg) | Outer Dimension(mm) |
BWG30 | 30 | 0.37 | 80 | 700x700x850 |
BWG60 | 60 | 0.55 | 95 | 850x730x850 |
BWG100 | 100 | 0.75 | 150 | 960x830x950 |
BWG200 | 200 | 0.75 | 190 | 1065x930x1200 |
BWG300 | 300 | 0.75 | 200 | 1255x1120x1030 |
BWG500 | 500 | 1.1 | 300 | 1300x1170x1450 |
BWG1000 | 1000 | 1.5 | 410 | 1600x1470x1570 |
BWG2000 | 2000 | 3 | 950 | 1800x1700x2100 |
BWG3000 | 3000 | 4 | 1300 | 2100x2000x2100 |
BWG5000 | 5000 | 5.5/7.5 | 3500 | 2240x2140x2700 |
