Model: FTJ250

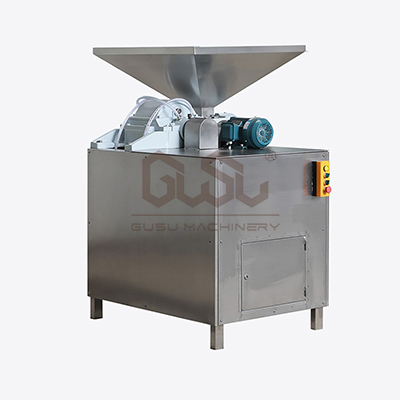

FTJ250 Automatic Sugar Grinding Machine Sugar Grinder Mill is mainly used to grind white sugar into powdered sugar, the equipment has a simple structure, beautiful appearance, strong, stable operation, and good crushing effect. The fineness of powdered sugar after grinding can reach 100-120 mesh. The working principle of the machine is that the material enters the crushing chamber, and is broken under the impact, shear, friction, and mutual impact between the gear between the high-speed rotating movable tooth disk and the fixed tooth disk, and becomes the required powder after screening by the screen. Suitable for grinding dry fragile materials, the Sugar Grinding Machine Sugar Grinder Mill is the ideal grinding equipment for pharmaceutical, food, chemical, and other industries.
Main feature
1. Simple operation, high efficiency, and low consumption
2. The parts in contact with the material are made of stainless steel
3. The shell is fully enclosed, safe and hygienic
Description
Dimensions
FTJ250 powdered sugar machine
1 Total power 9kw, host power 7.5kw, feeding power 1.5kw
2 Production capacity 250kg/h, fineness 100 mesh
3 frame, seal plate, hopper 304 stainless steel production, grinding parts cast steel and manganese steel, body casting, supporting dust breathable bag
4 with control box, electrical components: Chint ·
5 Dimensions: 1240*1000*1750mm
Model | Capacity (kg/h) | Motor Power(kW) | Fineness(um) | Outer Dimension(mm) |
FTJ250 | 250 | 9 | 100 | 1240x1000x1750 |
FTJ400 | 300-400 | 11.25 | 100-120 | 1700x 1050x2200 |
FTJ500 | 400-450 | 21.25 | 100-120 | 1700x1100x2400 |
FTJ600 | 500-600 | 41.6 | 100-120 | 6000x1500x3800 |
