Model: SMJ400,600

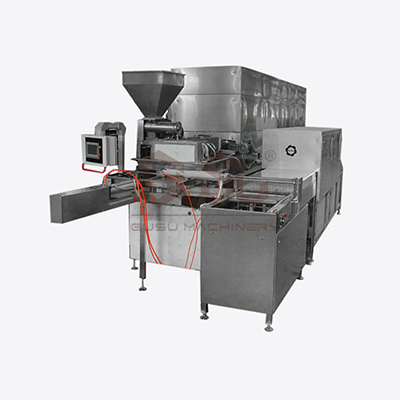

SMJ400,600 Automatic Grain Crisp Production Line

SMJ series grain crisp production line is mainly composed of a forming unit, vertical cold tunnel, de-molding unit, and conveyor with a heating tunnel.  The grain crisp production line has a reasonable structure, high output, and convenient operation and maintenance.  It can be used to produce a variety of oatmeal crisper chocolate, cereal crisper, and other products, such as round bar, square, etc.  Can be customized according to your requirements.

Features:
1.  After raw materials are mixed, forming, molding, freezing, and other processes are automatically completed, which saves human resources
2.  Mechanical transmission, precise positioning, and close fitting of the upper and lower molds, so that the oatmeal chocolate bar molding
3.  High performance, high efficiency, high output, convenient speed regulation, can achieve uninterrupted production
4.  High operation safety, stainless steel material, fully in line with food hygiene standards

Contact us

Description

Dimensions

1. SMJ400 Millet Machine (semi-automatic)
Dimensions: 4200x1250x2050 (L x W x H)
Template size: 400x300x30 (L x W x H)
Transmission bandwidth: 400mm
Production speed: 8-10molds/min
Total power: 4.5kW
Line speed: 2.4m/min
2. SMJ600 Corn Machine (fully automatic)
Dimensions: 21000x4600x2940 (L x W x H)
Template size: 600x400x35 (L x W x H)
Number of templates: 250pcs
Transmission bandwidth: 600mm
Production speed: 5-6molds/min
Total power: 38kW
Line speed: 2.4m/min

SMJ400

Outer Dimension

4200x1250x2050mm

Moulding Board Dims

400x300x30mm

Mesh belt width

400mm

Production speed

8-10molds/min

Total Power

4.5kW

Conveyor belt speed

2.4m/min

SMJ600

Outer Dimension

21000x4600x2940mm

Moulding Board Dims

600x400x35mm

Mesh belt width

600mm

Production speed

5-6molds/min

Total Power

38kW

Conveyor belt speed

2.4m/min
