Model: QCJ400,600

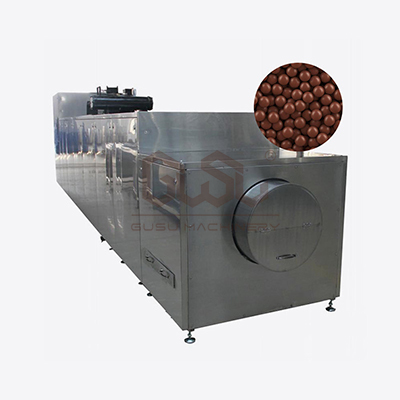

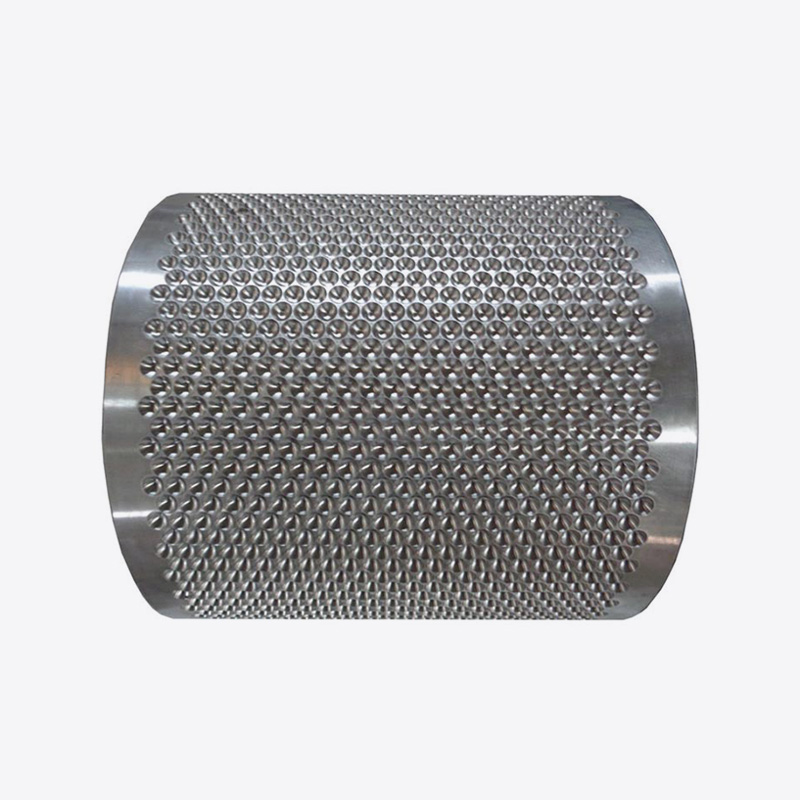

QCJ Series Chocolate Bean Roller Forming Machine The chocolate bean machine is used to produce various shapes of chocolate beans by cold rolling process. Chocolate beans come in the form of ball shape, ellipse shape, and bean shape (like M&Ms). The whole production of chocolate bean roller former is to use liquid chocolate as raw material to make chocolate beans. The Chocolate Bean Roller Forming Machine is divided into several parts: forming roller, conveying system, cooling system, separator, and other main components. The whole production process is operated under fully automatic closed conditions, which are safe and hygienic with little influence from environmental temperature and humidity. Suitable for continuous scale production. The machine is equipped with a composite roller, which can be replaced by different rollers to achieve the production of different shapes and sizes of chocolate bean products. It can be used with a chocolate polisher to make the surface smoother, or coated with colored syrup. The machine has simple operation and high automation. The Chocolate Bean Roller Forming Machine has a visual surveillance system. Compared with traditional production process equipment, it has the characteristics of low energy consumption, high efficiency, and good taste.
Description
Dimensions
QCJ400 chocolate bean forming machine
1 Total power 9.5kw, motor power 3.5kw
2 Output 100-300kg/h, the specific output needs to consider the size of the product
3 The frame and sealing plate are made of stainless steel, and the material contact part is 304 stainless steel. The width of the forming roller is 400mm, and the forming roller needs to be used with 10 pieces of brine machine. Brine temperature minus 10℃ -25 ℃. The forming cold channel is equipped with 8 evaporators, and the cold channel temperature is 0-10℃. Supporting 3 layers PU conveyor belt, conveyor belt width 500mm.
4 With control box, electrical components: Chint · Temperature control brand: Yudian
5 Overall dimensions 8620*1280*2100mm
2, QCJ600 chocolate bean forming machine
1 Total power 9.5kw, motor power 3.5kw
2 Output 200-400kg/h, the specific output needs to consider the size of the product
3 The frame and sealing plate are made of stainless steel, and the material contact part is 304 stainless steel. The width of the forming roll is 600mm, and the forming roll needs to be used with 15 pieces of brine machine. Brine temperature minus 10℃ -25 ℃. The forming cold channel is equipped with 8 evaporators, and the cold channel temperature is 0-10℃. Supporting 3 layers PU conveyor belt, conveyor belt width 700mm.
4 With control box, electrical components: Chint · Temperature control brand: Yudian
5 Overall dimensions 8620*1480*2100mm
| Model | Roller Width (mm) |
Production Capacity (kg/h) |
Roller Speed (/min) |
Surface Temp. of Cooling Roller(℃) |
Cooling Tunnel Temp. (℃) |
Cooling Time (min) |
Brine Tank Refrigeration Output(W/h) |
Evaporation Temp. (℃) |
Condensation Temp. (℃) |
Total Power (kW) |
Outer Dimension (mm) |
| QCJ400 | 400 | 100-150 | 0.3-1.5 | About -20 | 00-5 | 18-30 | 8260 | -35 | 30 | 25 | 8620x1280x2100 |
| QCJ600 | 600 | 150-250 | 0.3-1.5 | About-20 | 00-5 | 18-30 | 12390 | -35 | 30 | 30 | 8620*1480*2100 |
