Model: SHJ400,600,800,900,1000,1200

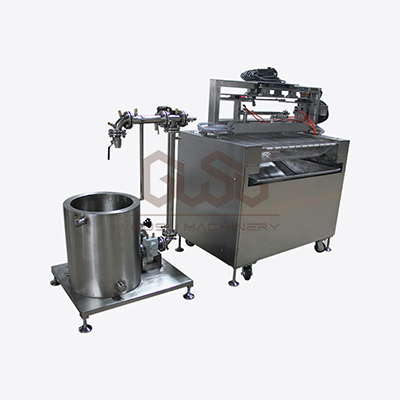

Automatic Chocolate Pattern Decorator Chocolate Decorative Pattern Line Chocolate Decorator is a device for making chocolate latte decorations on the surface of food, such as cookies, cakes, candies, etc., with a variety of patterns to choose from. Chocolate decorator uses vertical and horizontal bidirectional motion. Through a few simple adjustments, you can make a large variety of patterns, with net widths of 400,600,800,1000 and 1200mm optional. Usually used with chocolate enrober or other chocolate equipment.
Description
Dimensions
1, SHJ400 flower decoration machine
1 Total power 9.74kw, motor power 0.74kw, heating power 9kw
2 Frame stainless steel, material contact part 304 stainless steel, cylinder pull type, can be pulled out for cleaning, cylinder jacket insulation, Grundfos pump, mesh motor, decorative motor can be variable frequency speed regulation.
3 Mesh belt width 400mm, mesh belt line speed 3-5 meters/min
4 with control box, button control; Component brand: Chint; Thermostat brand: Yudian
5 Overall dimensions 1000*930*1870mm
2, SHJ600 flower decoration machine
1 Total power 9.74kw, motor power 0.74kw, heating power 9kw
2 Frame stainless steel, material contact part 304 stainless steel, cylinder pull type, can be pulled out for cleaning, cylinder jacket insulation, Grundfos pump, mesh motor, decorative motor can be variable frequency speed regulation.
3 Mesh belt width 600mm, mesh belt line speed 3-5 meters/min
4 with control box, button control; Component brand: Chint; Thermostat brand: Yudian
5 Overall dimensions 1000*1130*1870mm
3. SHJ800 flower decoration machine
1 Total power 9.74kw, motor power 0.74kw, heating power 9kw
2 Frame stainless steel, material contact part 304 stainless steel, cylinder pull type, can be pulled out for cleaning, cylinder jacket insulation, Grundfos pump, mesh motor, decorative motor can be variable frequency speed regulation.
3 Mesh belt width 800mm, mesh belt line speed 3-5 meters/min
4 with control box, button control; Component brand: Chint; Thermostat brand: Yudian
5 Overall dimensions 1000*1330*1870mm
4, SHJ900 flower decoration machine
1 Total power 9.74kw, motor power 0.74kw, heating power 9kw
2 Frame stainless steel, material contact part 304 stainless steel, cylinder pull type, can be pulled out for cleaning, cylinder jacket insulation, Grundfos pump, mesh motor, decorative motor can be variable frequency speed regulation.
The width of the net belt is 900mm, and the line speed of the net belt is 3-5 meters/min
4 with control box, button control; Component brand: Chint; Thermostat brand: Yudian
5 Overall dimensions 1000*1430*1870mm
5, SHJ1000 flower decoration machine
1 Total power 9.74kw, motor power 0.74kw, heating power 9kw
2 Frame stainless steel, material contact part 304 stainless steel, cylinder pull type, can be pulled out for cleaning, cylinder jacket insulation, Grundfos pump, mesh motor, decorative motor can be variable frequency speed regulation.
3 Mesh belt width 1000mm, mesh belt line speed 3-5 meters/min
4 with control box, button control; Component brand: Chint; Thermostat brand: Yudian
5 Overall dimensions 1000*1530*1870mm
6, SHJ1200 flower decoration machine
1 Total power 9.74kw, motor power 0.74kw, heating power 9kw
2 Frame stainless steel, material contact part 304 stainless steel, cylinder pull type, can be pulled out for cleaning, cylinder jacket insulation, Grundfos pump, mesh motor, decorative motor can be variable frequency speed regulation.
3 Mesh belt width 1200mm, mesh belt line speed 3-5 meters/min
4 with control box, button control; Component brand: Chint; Thermostat brand: Yudian
5 Overall dimensions 1000*1730*1870mm
| Model | Total Power(kW) | Motor Power(kW) | Heating Power(kW) | Mesh belt width(mm) | Mesh belt speed(m/min) | Outer Dimension(mm) |
| SHJ400 | 9.74 | 0.74 | 9 | 400 | 3-5 | 1000*930*1870 |
| SHJ600 | 9.74 | 0.74 | 9 | 600 | 3-5 | 1000*1130*1870 |
| SHJ800 | 9.74 | 0.74 | 9 | 800 | 3-5 | 1000*1330*1870 |
| SHJ900 | 9.74 | 0.74 | 9 | 900 | 3-5 | 1000*1430*1870 |
| SHJ1000 | 9.74 | 0.74 | 9 | 1000 | 3-5 | 1000*1530*1870 |
| SHJ1200 | 9.74 | 0.74 | 9 | 1200 | 3-5 | 1000*1730*1870 |
