Model:

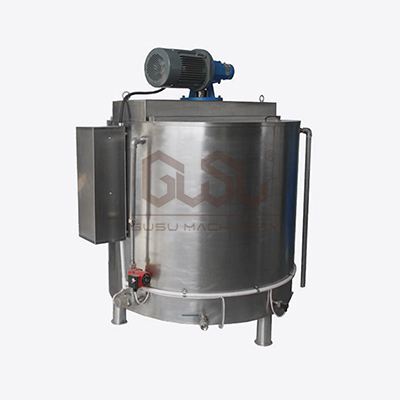

The Cocoa Butter Water Cycle Heating Insulated Storage tank Chocolate Tank equipped with a rated temperature (temperature adjustable) is used for storing the fine-milled chocolate paste via agitating to fulfill degassing, deodorization, dehydration, and avoiding the separation of oil and grease of the paste, etc. and foreign advanced technology with advantages of transmission, fine grinding, and leakproof, etc.
Description
Dimensions
The storage tank equipped with rated temperature is used for storing the fine-milled chocolate paste via agitating.
FEATURES
Stainless Steel structure
Twin-shell and insulation
Solid welded insulation jacket
Vertical Stirrer
Support a variety of customized design requirements
| Model | Capacity(L) | Motor Power (kW) | Weight(kg) | Outer Dimension(mm) |
| BWG30 | 30 | 0.37 | 80 | 700x700x850 |
| BWG60 | 60 | 0.55 | 95 | 850x730x850 |
| BWG100 | 100 | 0.75 | 150 | 960x830x950 |
| BWG200 | 200 | 0.75 | 190 | 1065x930x1200 |
| BWG300 | 300 | 0.75 | 200 | 1255x1120x1030 |
| BWG500 | 500 | 1.1 | 300 | 1300x1170x1450 |
| BWG1000 | 1000 | 1.5 | 410 | 1600x1470x1570 |
| BWG2000 | 2000 | 3 | 950 | 1800x1700x2100 |
| BWG3000 | 3000 | 4 | 1300 | 2100x2000x2100 |
| BWG5000 | 5000 | 5.5/7.5 | 3500 | 2240x2140x2700 |
