Model: RYG500

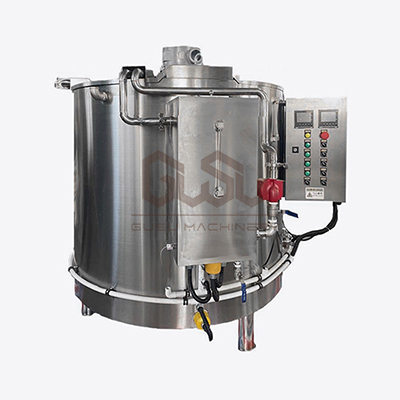

RYG500 Stainless Steel Chocolate Fat Melter Chocolate Heating Melting Tank appearance is round pot shape, capacity is 500L. Internal heating coils that heat uniformly can easily solve the bulk cocoa liquid block melting work and meet the requirements of chocolate production. The fat melter can also be used in conjunction with the chocolate delivery pump, which is used to transfer the melted chocolate pulp to the chocolate refiner or the chotolate conche to complete the subsequent chocolate processing and production work. Chocolate Fat Melter is the main equipment on the chocolate production line. The whole machine is made of environmentally protected stainless steel, anti-corrosion, and moisture-proof, has a long service life, reliable quality, and is stable and durable. Chocolate Fat Melter is widely used in the processing of candy, pastry, snack food, and chocolate food manufacturers.
Description
Dimensions
Heating power 3kw*5=15kw, motor power 1.5kw
Maximum capacity 500kg
Inner and outer stainless steel 304 production, inner plate thickness 3mm, outer plate thickness 2mm, jacket water heating, jacket water temperature 40-65℃, automatic temperature control. Jacket pressure is not more than 1.5kg, spindle speed 24r/min, 2-inch quick opening butterfly valve
With coil hot water tank and circulating water pump.
With control box, electrical components: Chint · Temperature control brand: Yudian
Dimensions: 1700*1450*1650mmmm
|
Hot water pipes' temperature |
55-80°C |
|
Water temperature in the jacket |
40-65℃ |
|
Heating Power |
15kW |
|
Motor Power |
1.5kW |
|
Nominal capacity |
500L |
|
Outer Dimension |
1700x1450x1650mm |
