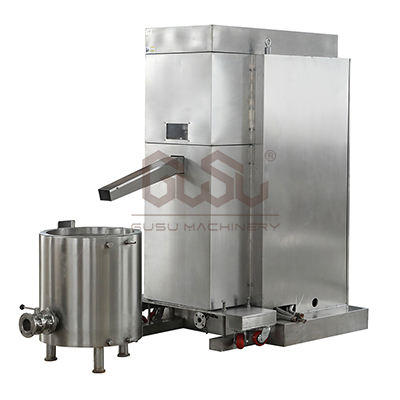

QMJ Continuous Ball Mill Machine Stainless Steel Chocolate Ball Mill

1, QMJ250 ball mill
1 Total power 28kw, motor power 22kw, heating power 6kw
2 Output 150-250kg/h, fineness 25-35um
3 Stainless steel production, material contact is 304 stainless steel. The equipment is equipped with 2 11kw motors to drive the spindle. Spindle speed 250-530r/min (variable frequency speed regulation). Ball mill steel ball 250kg (φ6 alloy steel ball). Cooling water should be provided during the ball grinding process, and 5 or 8 pieces of chiller can be used. With its own hot water tank and Grundfos pump, it provides insulated water to the equipment in insulated mode. Supporting storage cylinder, storage capacity 80L, storage cylinder jacket insulation
4 With control box, electrical components: Chint · Temperature control brand: Yudian
5 Overall dimensions 2000*1200*2050mm
2, QMJ500 ball mill
1 Total power 43kw, motor power 37kw, heating power 6kw
2 Output 300-500kg/h, fineness 25-35um
3 Stainless steel production, material contact is 304 stainless steel. The equipment is equipped with 2 18.5kw motors to drive the spindle. Spindle speed 280-390r/min (variable frequency speed regulation). Ball mill steel ball 450kg (φ6 alloy steel ball). Cooling water should be provided during the ball grinding process, and 8 or 10 pieces of chiller can be used. With its own hot water tank and Grundfos pump, it provides insulated water to the equipment in insulated mode. Supporting storage cylinder, storage capacity 80L, storage cylinder jacket insulation
4 With control box, electrical components: Chint · Temperature control brand: Yudian
5 Overall dimensions 2200*1250*2100mm
3, QMJ5 ball mill
1 Motor power 1.1kw
2 Output 5kg/ batch, fineness 25-35um
3 Stainless steel production, material contact is 304 stainless steel. The equipment is equipped with a 1.1kw motor to drive the spindle. Spindle speed 290r/min (variable frequency speed regulation). Ball mill steel ball 25kg (φ6 alloy steel ball). Need to support 1 set 1 constant temperature water tank.
4 With control box, electrical components: Chint · Temperature control brand: Yudian
5 Overall dimensions 700*750*1230mm
4, QMJ20 ball mill
1 Motor power 1.1kw, heating power 2kw
2 Output 20kg/ batch, fineness 25-35um
3 Stainless steel production, material contact is 304 stainless steel. The equipment is equipped with a 1.1kw motor to drive the spindle. Spindle speed 85r/min. Ball mill steel ball 25kg (φ6 alloy steel ball).
4 With control box, electrical components: Chint · Temperature control brand: Yudian
5 Overall dimensions 600*650*800mm
5, QMJ50 cylinder ball mill
1 Motor power 11kw, heating power 6kw
2 Output 50kg/ batch
3 Stainless steel production, material contact is 304 stainless steel. The equipment is equipped with 1 11kw motor to drive the spindle. Spindle speed 85r/min. Ball mill steel ball 450kg. An 8-speed chiller is required. There is also a diaphragm pump for slurry circulation
4 With control box, electrical components: Chint · Temperature control brand: Yudian
5 Overall dimensions 1800*900*2260mm
6, QMJ500 cylinder ball mill
1 Motor power 15kw, heating power 6kw
2 Output 500kg/ batch
3 Stainless steel production, material contact is 304 stainless steel. The equipment is equipped with a 15kw motor to drive the spindle. Spindle speed 85r/min. Ball mill steel ball 450kg. A 10-hp chiller is required. There is also a diaphragm pump for slurry circulation
4 With control box, electrical components: Chint · Temperature control brand: Yudian
5 Overall dimensions 1650*1100*2900mm
7, QMJ1000 cylinder ball mill
1 Motor power 22kw, heating power 6kw
2 Output 1000kg/ batch
3 Stainless steel production, material contact is 304 stainless steel. The equipment is equipped with a 22kw motor to drive the spindle. Spindle speed 85r/min. Ball mill steel ball 450kg. A 10-hp chiller is required. There is also a diaphragm pump for slurry circulation
4 With control box, electrical components: Chint · Temperature control brand: Yudian
5 Overall dimensions 1900*1300*3400mm
