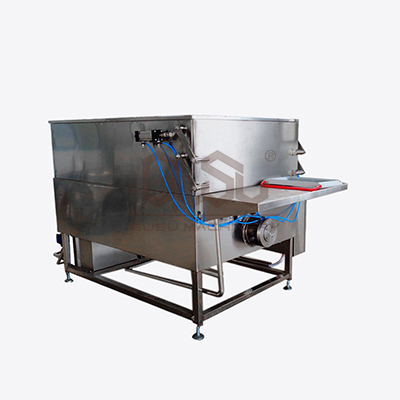

Model: RYG1000
The melting grid can easily be removed for cleaning inside the tank.
Description
Dimensions
Heating power 3kw*6=18kw
Maximum capacity 1000kg
Inner and outer stainless steel 304 production, inner plate thickness 5mm, outer plate thickness 3mm, jacket water heating, jacket water temperature 40-65℃, automatic temperature control. The pressure of the jacket is not more than 1.5kg. Cylinder mixing, upper and lower two layers of the coil, the coil has a separate hot water tank and circulating water pump. The cylinder block has its own circulating water pump.
With control box, electrical components: Chint · Temperature control brand: Yudian
Dimensions: 3200*1750*1650mmmm
|
Capacity |
1000L/h |
|
Controller |
Touch Screen PLC Control Panel |
|
Motor Power |
0.75kW |
|
Heating Power |
15kW |
|
Water Temperature in the Jacket |
40-65℃ |
|
Outer Dimension |
2550x1670x1820mm |
