Model:
GUSU chocolate coating pan is suitable for the polishing and coating of different shape of chocolate products such as circular, flat, oval and cylindrical form etc. Like coat film for nuts, beans, sugar or chocolate peanuts. Coating medium spraying, drying and exhausting can be carried out simultaneously for film coating. The electric blower attached with the machine can heat the product by extending the air outlet pipe into the pan. At the same time, the air blower blows hot air into the pot to remove the water of surface so as to obtain the solidified product. The whole coating procedure can be completed within 1-2 hours, Chocolate polished and coated are excellent in lustre, colour and shape.
Description
Dimensions

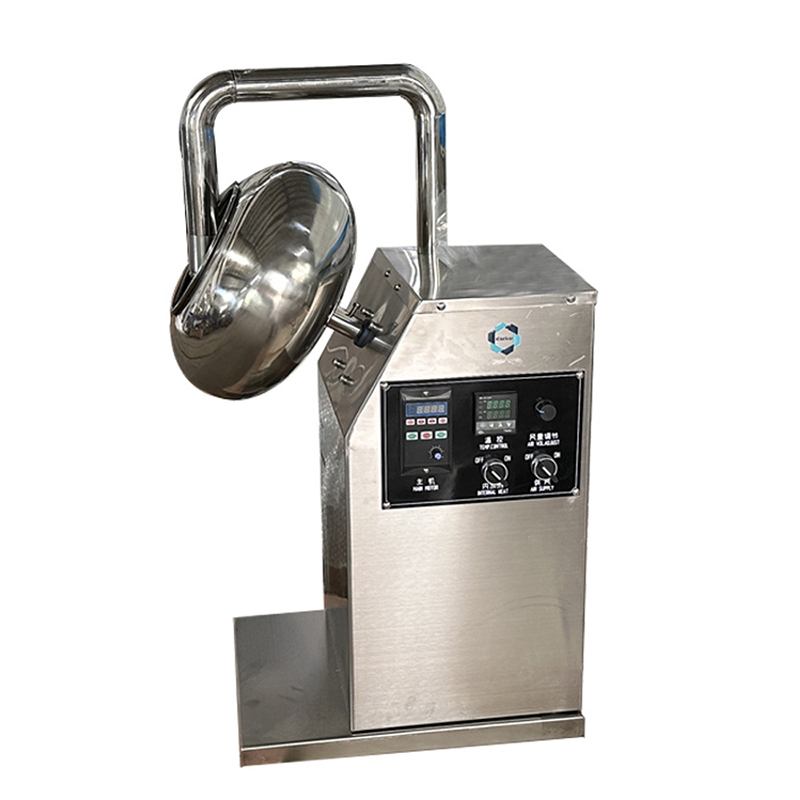

This machine consist of main body, worm wheel box, coating pan, heating device,hot air&common blower,electrical equipment, etc. The transmission process that the motor drive the worm wheel and worm via triangle belt to make the coating pan rotate. Then the material revolve up and down in the coating pan, so that even mixing and polishing can be completed well.
|
Coating machine diameter |
300mm |
|
Speed |
0-75r/min (adjustable) |
|
Main motor power |
120W |
|
Blower power |
40W |
|
Electric heating wire power |
600W |
|
Production capacity |
1-3kg/ batch |
|
Overall dimensions |
460x325x700mm |
|
Weight |
21kg |
Founded in
Factory Area
Skillful Employees
Gusu Food Processing Machinery Suzhou Co.,Ltd. is a high-tech enterprise integrating R&D, manufacturing, production, sales and after-sales. Since 1969, focusing on the development and production of chocolate complete equipment and automatic energy bar production line, is China's first manufacturing chocolate complete equipment enterprises, according to customer needs, to provide a complete set of chocolate equipment solutions. Known as the "mother of China chocolate" in the industry, BY-300 Chocolate Coating Pan For Polishing And Coating Manufacturers.
Main products include: melting pot, powdered sugar machine, chocolate grinding equipment, chocolate tempering machine, chocolate molding line, cookie pouring machine, energy bar cereal bar production line and so on. Complete product specifications, support customization. BY-300 Chocolate Coating Pan For Polishing And Coating Customized
. The company is located in China's economic development, the beautiful scenery of Suzhou, with more than 50 years of chocolate equipment industry experience, perfect service system, professional and technical personnel of nearly 100 people, the factory covers an area of 35,000 square meters. BY-300 Chocolate Coating Pan For Polishing And Coating Suppliers, products exported to 130 countries, With Mars, Barry Callebaut, Nestle, Cadbury, Heluxue, Glico, Good good, Meiji and many other well-known enterprises to establish long-term cooperative relations. After years of development, won a number of national patents, products through ISO9001:2008 certification and CE certification. We adhere to customer demand as the center, continuous innovation, accumulation, to promote the progress of chocolate equipment market.
