Model:

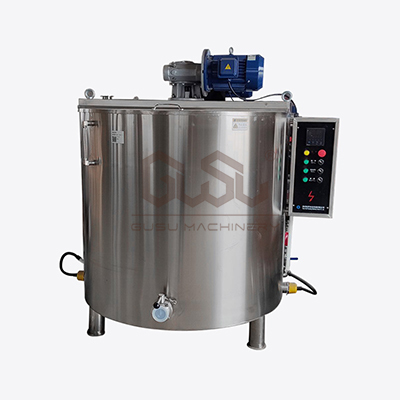

Electrical Heating Tank With Mixer Chocolate Storage Holding Tank Chocolate Tank, From 30L to 8,000L in the standard range of tanks. Larger capacity vertical and horizontal tanks can be built to suit your specific needs. These fully China-made Chocolate Storage Holding Tanks are used to store finished liquid masses like chocolate, at a required temperature and are continuously moved using the stirrer in one direction. A heavy-duty stirrer guarantees a continuous agitation of the mass. Water temperature in the jacket is controlled using a thermostat control which is governed by the setting on the control panel. In the chocolate production process, the chocolate pulp is output from the precision mill or ball mill, so that the precision mill or ball mill can continue to grind.
Description
Dimensions
Main features:
Compact structure, easy to use. Jacketed structure, heating the water in the interlayer of the cylinder body by electric heating, so that the chocolate paste does not solidify; In the process of heat preservation, the equipment keeps stirring the chocolate pulp, which has the functions of degassing, deodorizing, dehydration and preventing the separation of pulp and oil.
| Model | Capacity(L) | Motor Power (kW) | Weight(kg) | Outer Dimension(mm) |
| BWG30 | 30 | 0.37 | 80 | 700x700x850 |
| BWG60 | 60 | 0.55 | 95 | 850x730x850 |
| BWG100 | 100 | 0.75 | 150 | 960x830x950 |
| BWG200 | 200 | 0.75 | 190 | 1065x930x1200 |
| BWG300 | 300 | 0.75 | 200 | 1255x1120x1030 |
| BWG500 | 500 | 1.1 | 300 | 1300x1170x1450 |
| BWG1000 | 1000 | 1.5 | 410 | 1600x1470x1570 |
| BWG2000 | 2000 | 3 | 950 | 1800x1700x2100 |
| BWG3000 | 3000 | 4 | 1300 | 2100x2000x2100 |
| BWG5000 | 5000 | 5.5/7.5 | 3500 | 2240x2140x2700 |
